Removing stub axle from the control arm

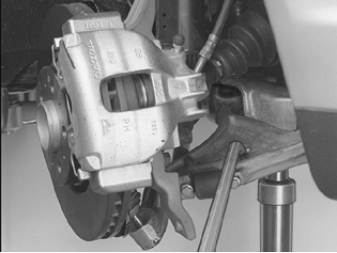

Fig 1: Identifying Prying Control Arm Down
GLL109812Courtesy of VOLVO CARS OF NORTH AMERICA.

Pry the control arm down. 9997076 At the same time, lift the wheel knuckle off the control arm.

NOTE:

Install socket on the wheel knuckle ball joint. Do not damage the rubber bellow for the ball joint.

9995562
