Lowering the engine and transmission

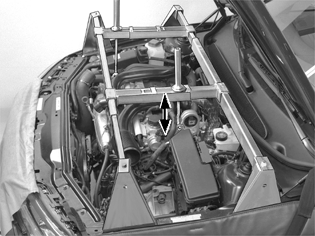

Fig 1: Identifying Lowering Of Engine And Transmission

Courtesy of VOLVO CARS OF NORTH AMERICA.

Lower the engine / transaxle on the left-hand side using the hook.

Lower the engine so that the distance between the upper edge of the mounting bracket and the spark plug cover is approximately 350 mm . See arrow.

CAUTION:

Ensure that the engine mounting is not against the exhaust boot and is not trapped. The exhaust boot must not be damaged.

Raise the car
