Aligning the fixture on the transmission

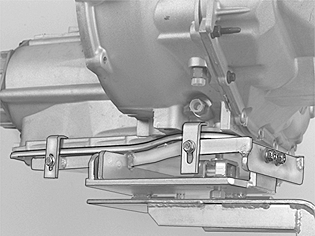

Fig 1: Identifying Fixture Aligned On Transmission

Courtesy of VOLVO CARS OF NORTH AMERICA.

Locate fixture 9995735 against the transaxle.

Fold up the side mountings over the edge of the transmission and secure.
