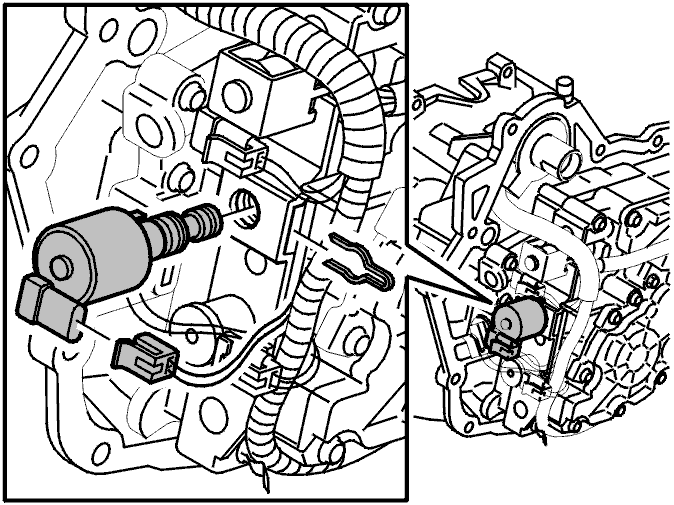

Installing the solenoid
Apply a little petroleum jelly to the sensor O-rings.
Install the solenoid.
NOTE:
The small guide lug on the solenoid should be upwards on installation.
Twist and press in the solenoid so that it bottoms against the control system
Install:
- the spring clamp. Check that the spring clamp is locked
- the connector.
