Removing the transmission side cover

See Removing gearbox side cover .

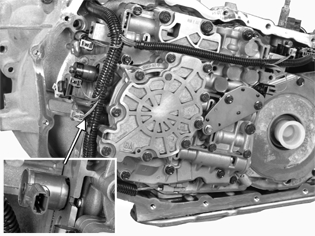

Fig 1: Locating Lock-Up Solenoid

Courtesy of VOLVO CARS OF NORTH AMERICA.

Later oil pump version from and including model year 2003-.

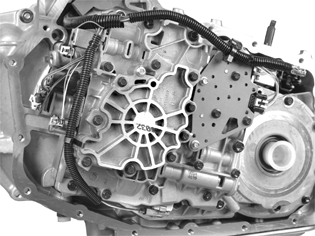

Fig 2: Identifying Transmission Side Cover Removed

Courtesy of VOLVO CARS OF NORTH AMERICA.

When replacing the lock-up solenoid, the oil pump must be removed from vehicles up to and including model year 2002 as described in the method below.
