Transmission - Removal, Replacement And Installation - 2 Of 2
>>
Transmission, Automatic (B6284T, 4T65EV-Gt; 1999-2001)
>>
Replacing the seal for the torque converter
>>
Extracting the sealing ring
Extracting the sealing ring

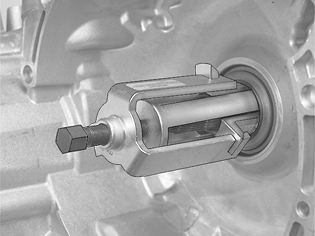

Fig 1: Identifying Extracting Sealing Ring
Courtesy of VOLVO CARS OF NORTH AMERICA.
Install:
the counterhold on puller 999 5762-2 between the hooks and in the sealing ring
puller
9995762
on the hooks.
Extract the sealing ring. It may sit firmly.
