Replacing the gasket, O-ring and strainer

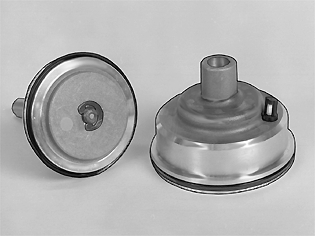

Fig 1: Identifying Gasket, O-Ring And Strainer
GLL103924Courtesy of VOLVO CARS OF NORTH AMERICA.

Replace the O-ring on the piston.

Replace the gasket on the inner piston.

NOTE:

Check the position of the gasket on the piston.

Remove the strainer by pulling it straight up. Replace the strainer.
