Removing the servo cylinder (2-1)

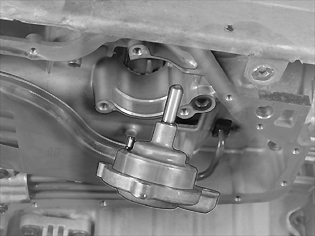

Fig 1: Identifying Servo Cylinder Removed
GLL103920Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the three screws.

Pull down the cover with the servo cylinder. Check the position of the small strainer on the cylinder.

CAUTION:

Note the position of the strainer for reinstallation.

Lift the piston from the cover.
