Disassembling servo cylinder
Courtesy of VOLVO CARS OF NORTH AMERICA.

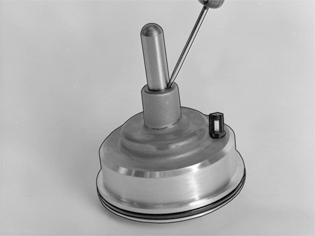

Open the catch on the push rod (press the piston towards the work surface).
Separate the cylinder.
Check:
- for dirt or other particles in the cylinder
- that both the springs are intact.
Blow the cylinder clean.
