Installing the servo cylinder on the transmission

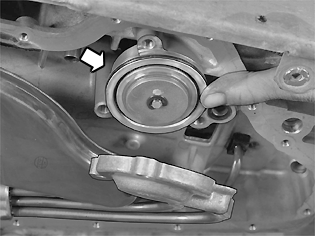

Fig 1: Installing Servo Cylinder On Transmission

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE:

The strainer on the piston must come into the opening on the left in the transmission.

Apply petroleum jelly to the O-ring. Use Volvo Genuine parts petroleum jelly (P/N 116 1151-4).

Install the piston in the housing. Hold the piston in position by hand. Check that the strainer is opposite the opening on the left hand side.

Slide the cover up towards the piston. Lower the piston towards the cover. Press the piston down into the cover using your fingers so that the O-ring cannot be seen on the piston.

Fig 2: Identifying Servo Cylinder Installed

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the screws. Hand tighten the screws (secure the cover so that all the screws are aligned).

Tighten the screws. Tighten to 25 Nm .
