Assembling the servo cylinder

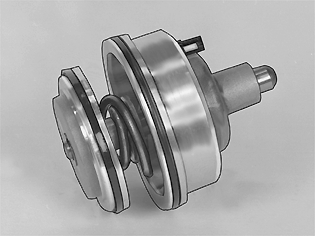

Fig 1: Identifying Servo Cylinder

Courtesy of VOLVO CARS OF NORTH AMERICA.

Apply a little petroleum jelly to the inner piston gasket. Use Volvo Genuine parts petroleum jelly (P/N 116 1151-4).

Carefully press the piston up into the cylinder.

Install the catch on the push rod.
