Transmission - Removal, Replacement And Installation - 2 Of 2
>>
Transmission, Automatic (B6284T, 4T65EV-Gt; 1999-2001)
>>
Replacing differential housing cover
>>
Remove the bracket between the transmission and the engine
Remove the bracket between the transmission and the engine

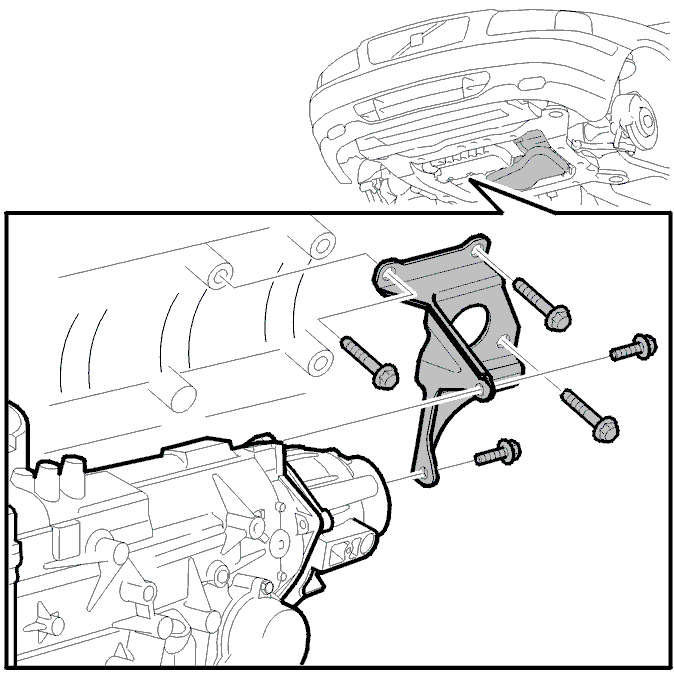

Fig 1: Identifying Bracket Between Transmission And Engine
Courtesy of VOLVO CARS OF NORTH AMERICA.
Remove:
the two screws in the differential housing cover
the three screws for the bracket in the cylinder block
the bracket.
