Install the vehicle speed sensor (VSS)

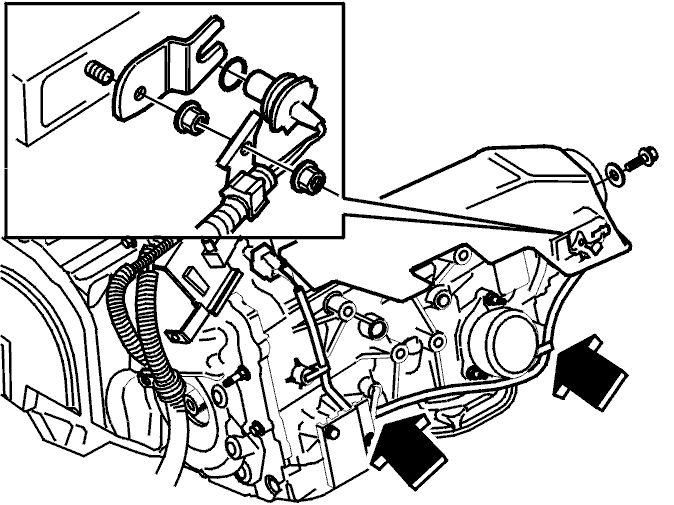

Fig 1: Identifying Removing/Installing Sensor
GLL101523Courtesy of VOLVO CARS OF NORTH AMERICA.

Tighten the screw. Tighten to 10 Nm  .

Install the screw for the splash guard. Tighten the screw. Tighten to 25 Nm  .
