Install the spacer washer and the throw-out bearing on the differential

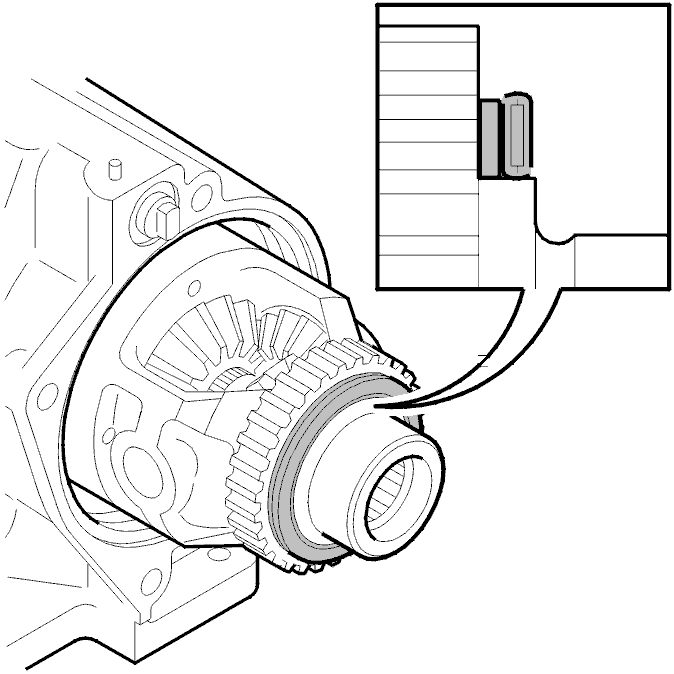

Fig 1: Identifying Throw-Out Bearing

Courtesy of VOLVO CARS OF NORTH AMERICA.

Apply a little petroleum jelly on the throw-out bearing so that it secures against the spacer washer.

Install:

• the spacer washer against the gear wheel
• the throw-out bearing, see the illustration.
