Install the differential housing cover

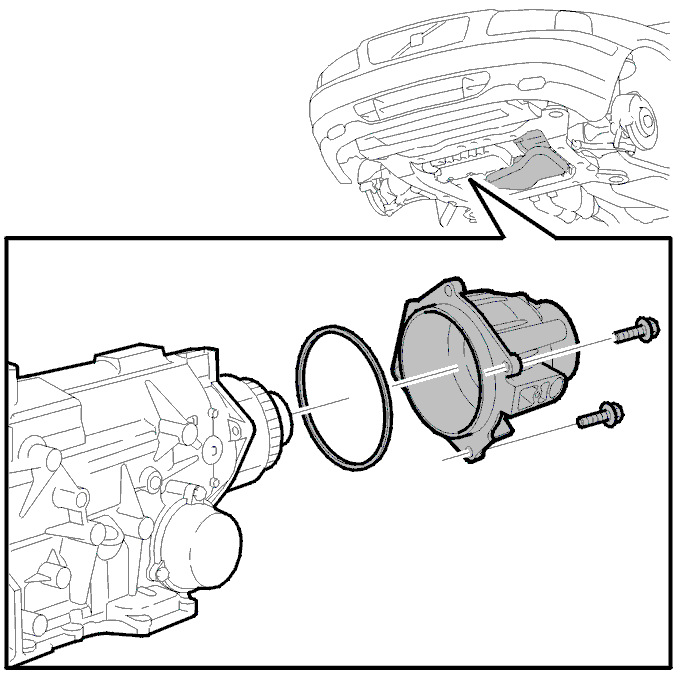

Fig 1: Identifying Differential Housing Cover

GLL101581

Courtesy of VOLVO CARS OF NORTH AMERICA.

Use a new gasket.

Finger-tighten the screws.
