Removing the pipe lines from the sub-frame

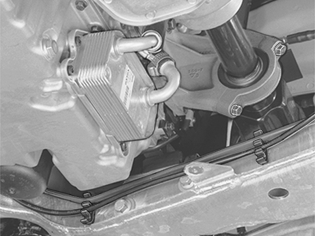

Fig 1: Locating Drive Shaft In Gearbox

Courtesy of VOLVO CARS OF NORTH AMERICA.

Unhook the servo pipe and the evaporator pipe from the holders on the right-hand side of the sub-frame. Unhook the servo pipe from the clip on the sub-frame.
