Transmission - Removal, Replacement And Installation - 2 Of 2
>>
Transmission, Automatic (B6284T, 4T65EV-Gt; 1999-2001)
>>
Piston / cover, back-up (reverse) servo, replacing
>>
Removal
>>
Replacing the cover
Replacing the cover

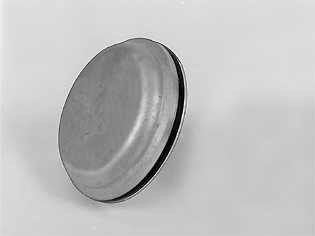

Fig 1: Identifying Piston Cover
Courtesy of VOLVO CARS OF NORTH AMERICA.
Replace the cover.
Install a new O-ring.
Courtesy of VOLVO CARS OF NORTH AMERICA.
