Installing the piston and cover

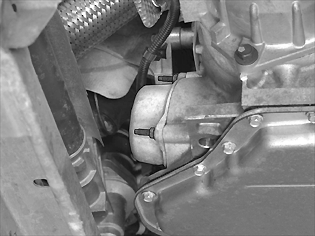

Fig 1: Identifying Piston Cover

Courtesy of VOLVO CARS OF NORTH AMERICA.

Apply a little petroleum jelly to the O-ring for the piston and the sealing ring for the cover.

Use Volvo Genuine parts petroleum jelly (P/N 116 51-4).

Reinstall the piston in the transmission.

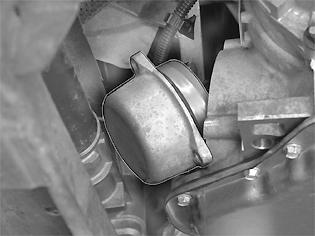

Fig 2: Identifying Piston Cover Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Angle the cover over the piston. Slide the cover towards the transmission.

Tighten the screws alternately. Tighten to 10 Nm  .

Install the wiring on the stud.
