Installing the control system / valve housing: Transferring

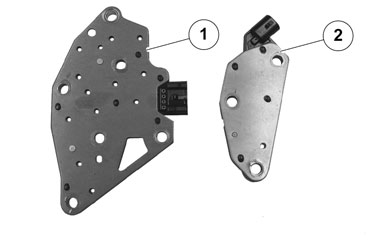

Fig 1: Identifying Pressure Switch
GLL169013Courtesy of VOLVO CARS OF NORTH AMERICA.
  1. Pressure switch -2002
  2. Pressure switch 2003-
CAUTION:

The screws are of different lengths. It is important that the screws are installed in the right place.
