Replacing the seal on the pump shaft

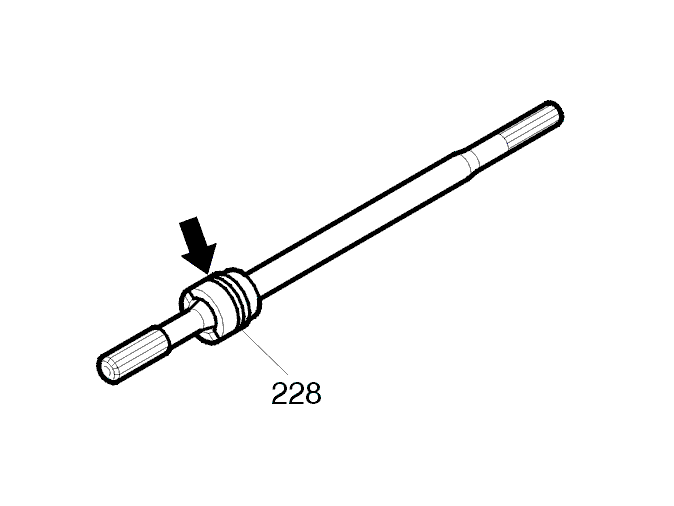

Fig 1: Identifying Pump Shaft Seal

GLL106541

Courtesy of VOLVO CARS OF NORTH AMERICA.

Pull out the pump shaft.

Replace the seal around the shaft.

Reinstall the pump shaft.
