Checking the balls in the valve housing

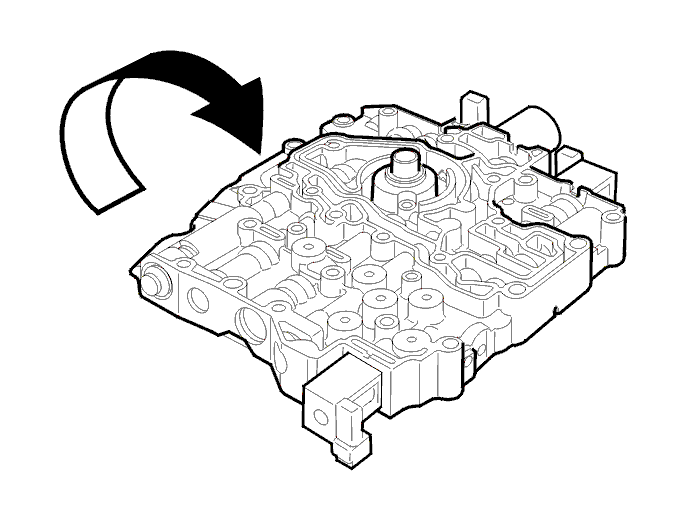

Fig 1: Identifying Turning The Valve Housing
GLL105476Courtesy of VOLVO CARS OF NORTH AMERICA.

Turn the valve housing so that the balls are upside down.

The balls should remain position. (If any of the balls fall out, use more petroleum jelly).

Turn the valve housing back again.
