Installing new solenoids on the new valve housing

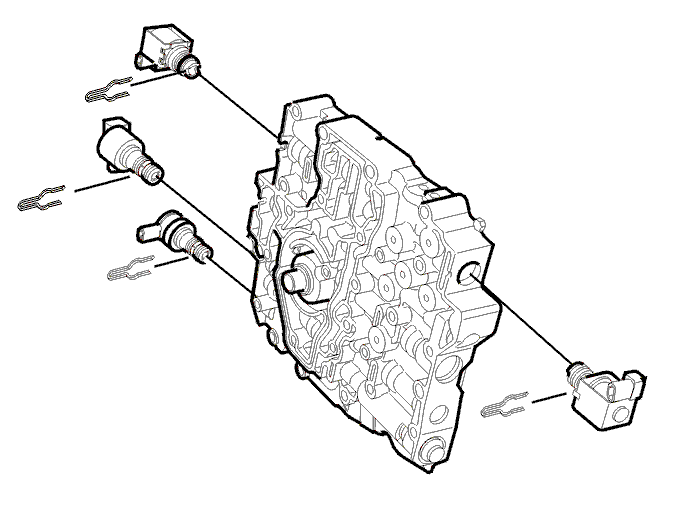

Fig 1: Identifying Solenoids On Valve Housing
GLL105480Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the solenoids in the relevant positions on the valve housing.

NOTE:

Make sure that the solenoids are secure.
