Control system for cars of model year 2003-

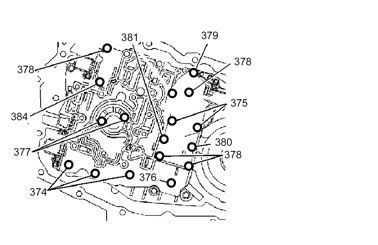

Fig 1: Identifying Valve Housing And Pressure Sensor And Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the following screws:

• 3 screws numbered 374 (64 mm)
• 2 screws numbered 375 (60 mm)
• 1 screw numbered 376 (30 mm). Retain the guide sleeve on the screw or in the valve housing.
• 4 screws numbered 378 (55 mm)
• 1 screws numbered 379 (15 mm)
• 1 screws numbered 380 (10 mm)
• 1 pc. number 384 (85 mm)

Leave the screws numbered 377 (45 mm) in position for the time being.

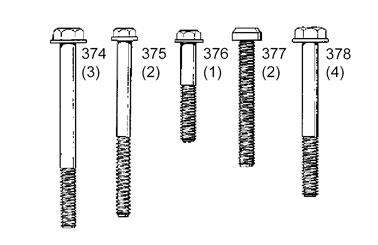

Fig 2: Identifying Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 3: Identifying Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.
