Checking the markings and location of the gaskets

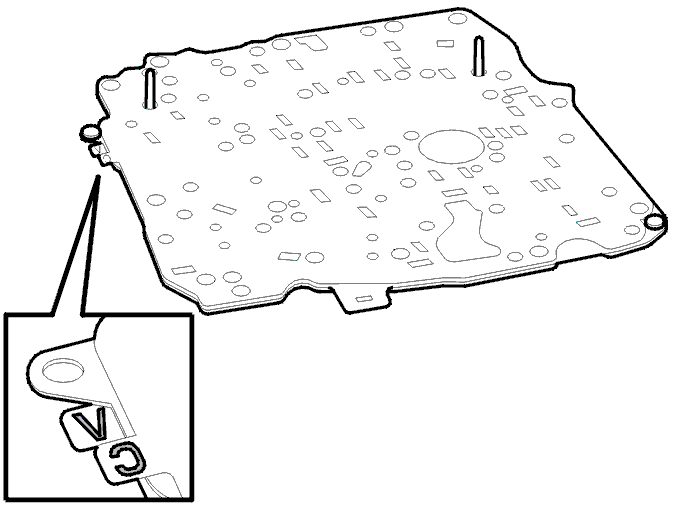

Fig 1: Identifying Markings And Location Of Gaskets (1 Of 2)

Courtesy of VOLVO CARS OF NORTH AMERICA.

The gaskets are marked C and V.

Gasket C is against the control system housing.

Gasket V is against the valve housing.

Fig 2: Identifying Markings And Location Of Gaskets (2 Of 2)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Distribution plate

Remove the locking pin (368) (can be reused).

Lift up the distribution plate together with gasket C.

Lift out gasket V.
