Air vent housing

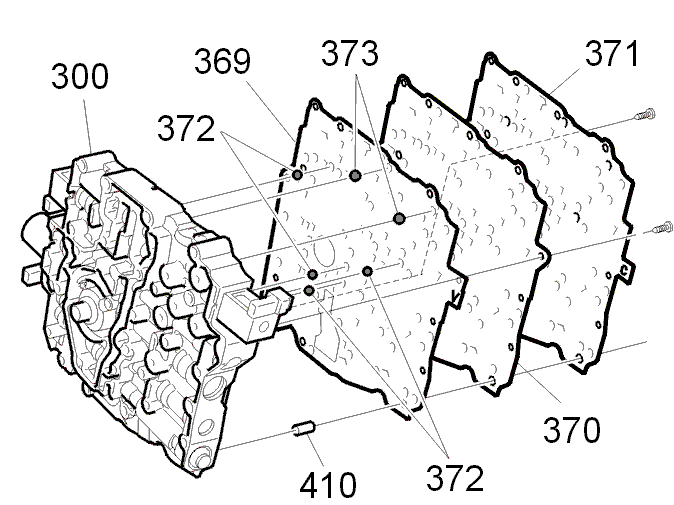

The valve housing consists of:
- the valve housing (300)
Gaskets:
- 1 marked C (369)
- 1 marked V (371).
- distribution plate (370)
- guide sleeve (410).
There are six balls in the valve housing. 4 small (372) and 2 larger (373).
When separating the valve housing from the control system housing: The gaskets and plate must remain in the valve housing so that the balls do not fall out of their seats in the valve housing.
There are two small strainers (382) on the distribution plate.
2 plastic plugs (368) hold the gasket and plate in place.
