Removing the rear engine mounting

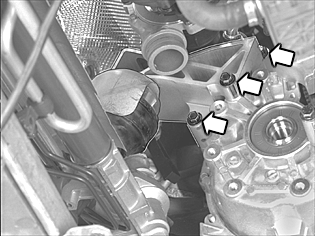

Fig 1: Locating Engine Mounting Screws

GLL148914

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

the 3 screws
the mounting and the engine pad.
