Installing the control system
NOTE:
Ensure the lever for the gear selector is set to neutral.
Align the control system lever with the gear selector lever.
Install:
- the screws for the control system
NOTE:
The different screw lengths are given in mm. See the illustration.
- a new gasket for the cover on the control system.
Tighten the screws alternately to light contact. Then tighten to:Summary of tightening torques for specific components .
Install:

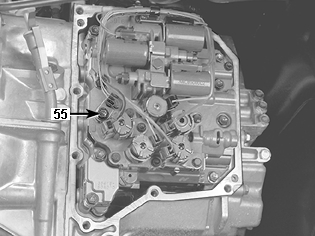

- the new cable harness. Connect the connectors to the solenoids
- the oil temperature sensor with the holder and screw. Tighten. See: Summary of tightening torques for specific components
NOTE:
Screw length given in mm as illustrated.
Install the cable harness on the holder. Check that the cable harness is correctly positioned.
