Installing the control system cover

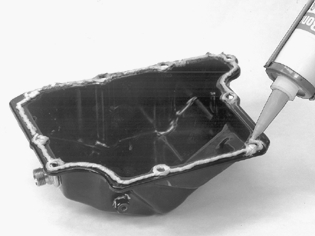

Fig 1: Applying Sealant To Cover

Courtesy of VOLVO CARS OF NORTH AMERICA.

Check that the mating surface for the cover is level.

Wipe the cleaned mating surfaces on the cover and transmission.

Apply an approximately 3 mm thick bead of sealing compound to the cover.

Also apply sealing compound around the screw holes.

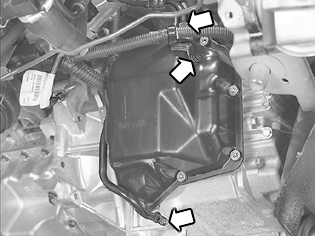

Fig 2: Identifying Control System Cover, Harness Clamp, Cooler Return Line And Bracket

Courtesy of VOLVO CARS OF NORTH AMERICA.

Reinstall the control system cover on the transmission. Tighten. See: Summary of tightening torques for specific components .

HINT: Diagonally install 2 x 30 mm studs, correctly aligned in the cover.

Pull the cable up to the oil temperature sensor.

Install:

• the oil pipe to the transmission. Use a new  O-ring
• the return line for the control system cover
• the cable harness for the holder on the cover.
