Installing components
Remove the spacer.
Position 9985972 under the left-hand side of the sub-frame.
Press the frame up against the car body. Install 2 x M14 new screws to the sub-frame. Lubricate the threads. Tighten. See: Summary of tightening torques for specific components . Install the support plate screws at the same time.
Right-hand side:
Position the mobile jack under the right side of the sub-frame. Press the frame up. Install 2 x M14 new screws in the same way as on the left-hand side. Remove the jack.

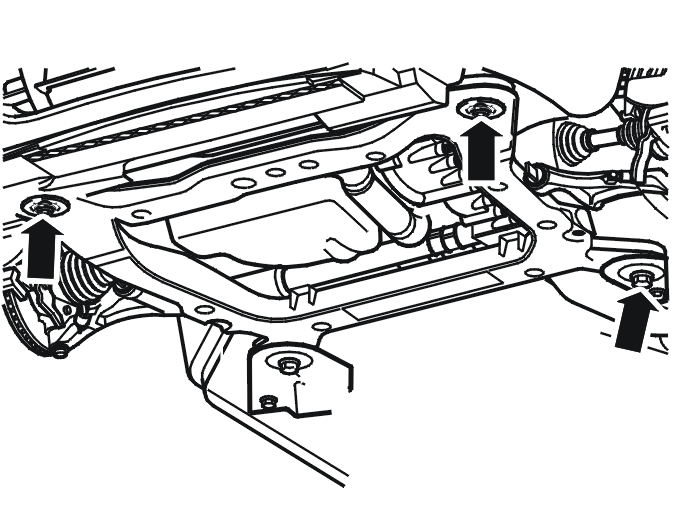

Finally tighten the four frame screws. See: Summary of tightening torques for specific components .
Tighten the support plates. See: Summary of tightening torques for specific components .
Install:
- new locking nuts and screws for the steering gear. Tighten. See: Summary of tightening torques for specific components
- the screw for the front engine pad. Tighten. See: Summary of tightening torques for specific components
- new screws for the torque rod mounting. Tighten. See: Summary of tightening torques for specific components .
Press the power steering line into the holders on the sub-frame.

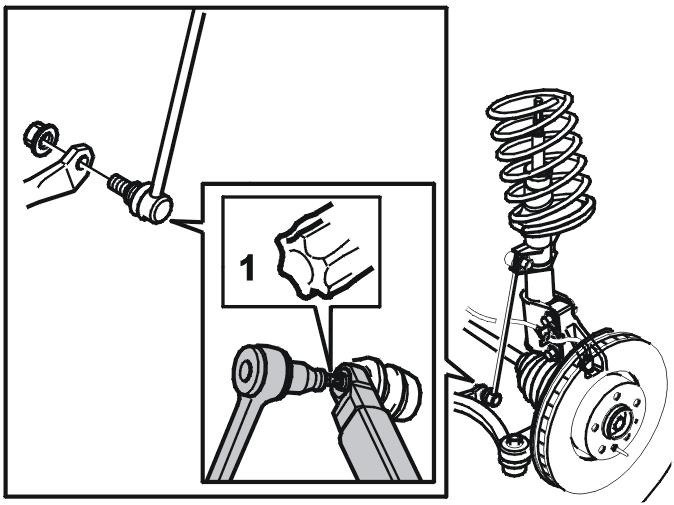

Install the anti-roll bar link on the anti-roll bar.
Use a new nut.
Tighten. See: Summary of tightening torques for specific components .
Use a Torx wrench (1) as a counterhold. Do not damage the boot.
Applies only to right-hand drive vehicles.

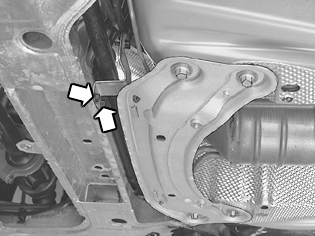

Install the screws for the collision protection system. Tighten. See: Summary of tightening torques for specific components .
Install:

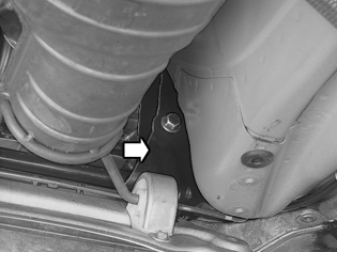

- the bracket for the heated oxygen sensor (HO2S).
Applies only to right-hand drive vehicles.
- the cross member.
Ensure that the brake pipe is pressed into place in its holder.
Tighten the member. See: Summary of tightening torques for specific components .

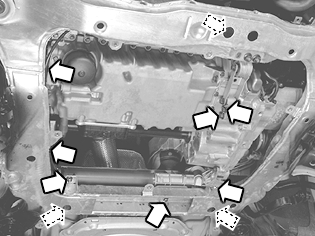

Install:
- the screw for the cable conduit
- the holder for the ground lead.
Only applies to vehicles with parking heaters:
Install:

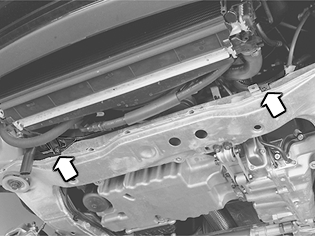

- the heater to the sub-frame
- the fuel line for the heater to the holders on the sub-frame
- the radiator hose.
Remove:
