Only D5244T-T3

Fig 1: Identifying Vibration Damper (1 Of 2)

Courtesy of VOLVO CARS OF NORTH AMERICA.

There are two different types of vibration damper (see this and the next step).

When replacing the bevel gear, transfer the vibration damper to the new bevel gear.

Remove the vibration damper.

Fig 2: Identifying Vibration Damper (2 Of 2)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the vibration damper.

Fig 3: Locating Rear Engine Pad Screw

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove screws for the rear engine pad.

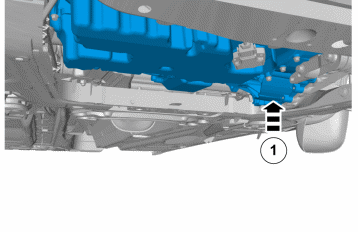

Fig 4: Identifying Raising Engine/Transmission

Courtesy of VOLVO CARS OF NORTH AMERICA.

Raise the engine/transmission using a mobile jack.
