Greasing splines

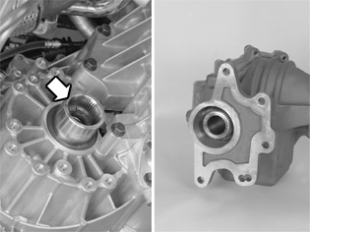

Fig 1: Identifying Spline Joint Between The Transmission And The Bevel Gear

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE:

Use all the grease in the package.

Always grease the splines joint between the transmission and the bevel gear. Greasing is carried out to avoid corrosion between the terminal sleeve and the bevel gear tubular shaft.

Replace the connection sleeve. Seal rings, connecting socket

Thoroughly lubricate the splines in the connection sleeve.
