Installing the bevel gear

Fig 1: Identifying Bevel Gear And Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Make sure that the contact faces on the transmission and bevel gear are clean.

NOTE:

Use new screws.

Install the bevel gear.

Lightly tighten the screws alternately.

Tighten the screws alternately to 75 Nm. Tightening torque

Fold the tab up into place on the sub-frame.

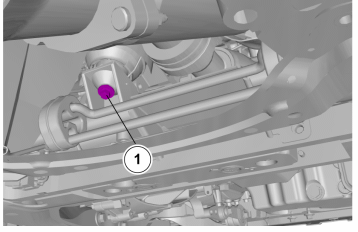

Fig 2: Locating Rear Engine Pad Screw

Courtesy of VOLVO CARS OF NORTH AMERICA.

Lower the engine/transmission.

Install the screws for the engine pad.

Tighten to 50 Nm.
