Checking the oil level in the bevel gear
Courtesy of VOLVO CARS OF NORTH AMERICA.
The bevel gear is supplied filled.
Correct volume is 750 ml.
NOTE:

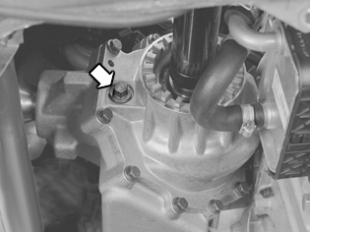

When checking the oil level: Fill with oil up to the filler plug, then draw out 0.16 L.
Install the filler plug with new gasket. Tighten to 35 Nm.
