Installing a new sealing ring

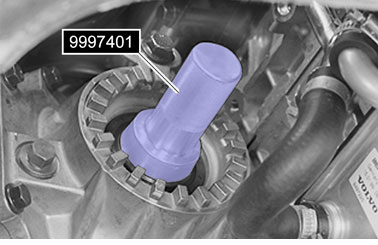

Fig 1: Identifying Installing New Sealing Ring
GLL172321Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the new sealing ring for the drive shaft.

Lubricate the seal using wheel bearing grease, P/N 1161241-3.

Use drift 9997401 . Tap in the ring to stop.

If also replacing the seal for the crown wheel shaft, proceed to Sealing ring for crown wheel shaft for bevel gear, replacing .

NOTE:

To install drive shaft, see.
