Removing the sealing ring

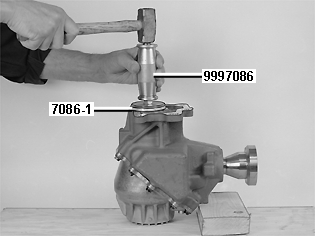

Fig 1: Removing Left-Hand Side Crown Wheel Shaft Sealing Ring

Courtesy of VOLVO CARS OF NORTH AMERICA.

Position the bevel gear on a workbench. Support the gear using a wooden block.

Use extractor 9997086 together with spacer ring 7086-1. Knock the seal towards the housing using the extractor sleeve.

Remove the seal using the impact driver handle of the extractor.

Check thoroughly that no seal residue remains.
