Installing the sealing ring

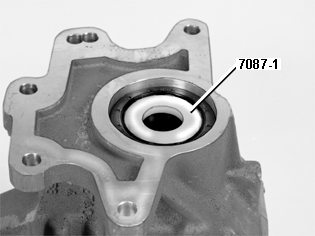

Fig 1: Identifying Sleeve 7087-1 Installed In End Of Shaft

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install sleeve 7087-1 in the end of the shaft. Lubricate the lip of the new sealing ring. Use grease 116 1241-3 (80g). Position the seal on the sleeve.

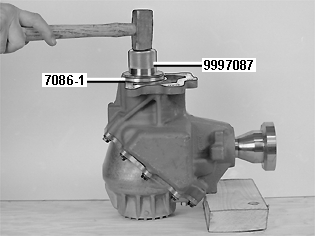

Fig 2: Installing The Seal Into The Bevel Gear Using Drift 999 7087 Together With Spacer Ring 7086-1

Courtesy of VOLVO CARS OF NORTH AMERICA.

Knock the seal into the bevel gear. Use drift 9997087 together with spacer ring 7086-1. Ensure that the tool goes towards the bevel gear housing. Check that sleeve 7087-1 is removed with the tool.
