Removing the propeller shaft

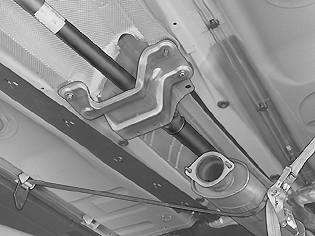

Fig 1: Identifying Propeller Shaft And Exhaust Secured Using Strap

Courtesy of VOLVO CARS OF NORTH AMERICA.

Slacken off the support for the center bearing from the propeller shaft and body. Turn the support upside down. Let the propeller shaft rest on the support.

Press the shaft nuts together. Move the shaft to one side and tie it up.
