Installing the seal

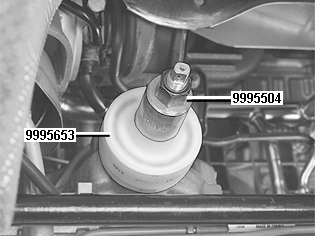

Fig 1: Identifying Pressing In Seal Using 999 5653 And 999 5504

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the seal.

Lubricate the sealing ring lip. Use wheel bearing grease, P/N 1161241-3. Install the seal on drift 9995653 against the side of the tool marked 1155.

Press in the seal.

Use press tool 9995504 .
