Sealing ring connecting socket drive shaft/differential, replacing

Special tools:

9992615

9995069

9995575

9995576

9995654

9995656

9995657

9995777

NOTE:

As the illustrations in this service information are used for different model years and / or models, some variation may occur. However, the essential information in the illustrations is always correct.

Preparatory work

Fig 1: Identifying Removal Of Circlip From Connecting Socket
GLL109587Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

Action for worn splines in sleeve

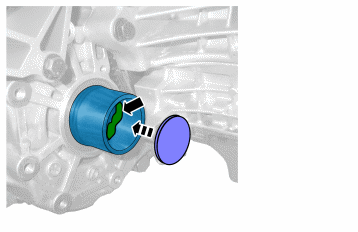

Fig 2: Providing Protection Against Grinding Chips Entering Transmission
GLL161218Courtesy of VOLVO CARS OF NORTH AMERICA.

Cut a 40 mm diameter piece of cardboard and use as protection to prevent grinding chips from ending up in the transmission. Apply a thick bead of grease or Vaseline on the seal in the sleeve. Press the piece of cardboard against the seal.

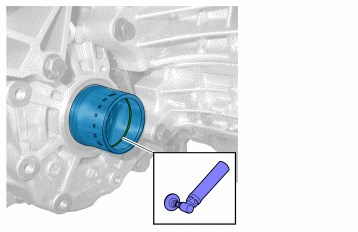

Fig 3: Grinding A Groove Inside Of Sleeve
GLL161220Courtesy of VOLVO CARS OF NORTH AMERICA.

Grind a groove in the inside of the sleeve to enable the expander 9995777 to get a hold.

The sleeve can also be heated with a hot-air gun or induction heater.

Installing tool

Fig 4: Identifying Expander 999 5777, Puller Rod 999 5777 And Extractor 999 5777
GLL109588Courtesy of VOLVO CARS OF NORTH AMERICA.

Install expander 5777-1 and connecting rod 5777-2 (these are included in extractor 9995777 ) for the puller cylinder.

Puller cylinder 9995575 is used together with hydraulic pump 9995576 (foot operated).

Alternatively, tool 9992615 can be used. This consists of a puller cylinder and a compressed air driven hydraulic pump.

Removing the connecting socket

Fig 5: Identifying Sleeve 999 5777
GLL109589Courtesy of VOLVO CARS OF NORTH AMERICA.

Place a container underneath the gearbox.

Ensure that the piston rod in the puller cylinder is in the outer position. Position socket 9995777 between the puller cylinder and the transmission. Press in the expander so that it enters the channel on the connecting socket.

Apply the puller cylinder. Check that the socket between the gearbox and the puller cylinder is in contact with its support surfaces.

Remove the socket.

Check the mating surface for the connecting socket. The socket must be replaced if there are signs of grooves or corrosion.

Removing the sealing ring for the connecting socket

Fig 6: Identifying Removing Sealing Ring From Gearbox
GLL109195Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the sealing ring from the gearbox.

Use extractor 9995069 and counterhold 9995656 .

Check that there are no seal remnants.

Removing the drive shaft sealing ring

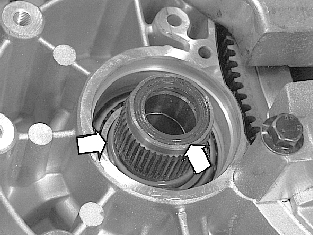

Fig 7: Identifying Drive Shaft Sealing Ring And O-Ring
GLL109196Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the sealing ring for the drive shaft and O-ring for the connector sleeve.

Use a screwdriver.

Check that there are no seal remnants.

Installing the O-ring and sealing ring

Fig 8: Installing O-Ring And Sealing Ring
GLL109193Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

Lubricate the seal using the wheel bearing grease, P/N 116 1241-3.

Use drift 9995654 .

Installing the sealing ring

Fig 9: Installing Sealing Ring
GLL109194Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the sealing ring for the connector seal.

Lubricate the seal using the wheel bearing grease, P/N 116 1241-3.

Use drift 9995657 .

Tap in the seal until the drift bottoms on its stop against the gearbox.

Fig 10: Identifying Applying Adhesive
GLL164122Courtesy of VOLVO CARS OF NORTH AMERICA.

Use: Adhesive, part no. 116 1370

Installing the snap ring and connecting socket

Fig 11: Identifying Installing Sleeve In Gearbox
GLL109198Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

Use a rubber mallet to knock in the sleeve.

Finishing

See Bevel gear, replacing .
