Removing spring strut from control arm

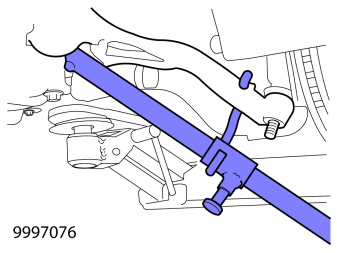

Fig 1: Identifying Unhooking Control Arm From Ball Joint Using Lever 999 7076
GLL157718Courtesy of VOLVO CARS OF NORTH AMERICA.

Unhook the control arm from the ball joint. Use lever 9997076

NOTE:

Position the tool so that it does not damage the boot on the ball joint.
