Removing the propeller shaft

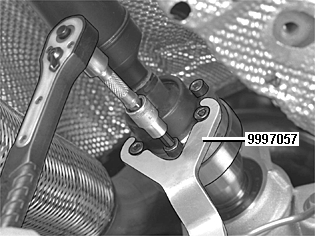

Fig 1: Identifying Removal Of Propeller Shaft Using Counterhold

Courtesy of VOLVO CARS OF NORTH AMERICA.

Mark the propeller shaft CV joint in relation to the bevel gear flange.

Remove:

• the 2 screws for the center bearing mounting
• the propeller shaft screws. Use counterhold 9997057 . Press the propeller shaft joints together. Move the propeller shaft to one side and tie it up.
