Checking the bevel gear

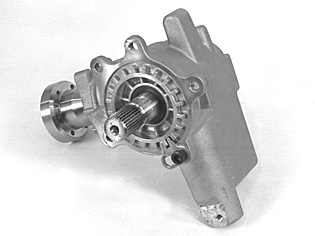

Fig 1: Identifying The Sealing Rings And Mating Surfaces

Courtesy of VOLVO CARS OF NORTH AMERICA.

Check that the sealing rings and mating surfaces are not damaged. Check for leakage. Replace the bevel gear in the event of leakage or damage.

HINT: A new bevel gear is filled with oil, however, always check the oil level before test driving.
