Press up the sub-frame on the right-hand side

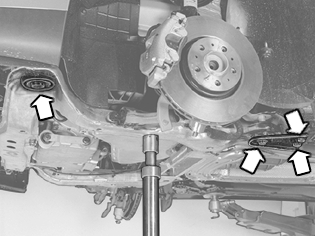

Fig 1: Fixture 998 5972 Positioned Under Sub-Frame

Courtesy of VOLVO CARS OF NORTH AMERICA.

Tighten the sub-frame screws to light contact. Then slacken off the screws approximately 4-5 turns.

NOTE:

This is because the sub-frame hangs down more on one side.

Move the mobile jack to the left hand side.
