Installing the right drive shaft on the transmission, wheel spindle and control arm

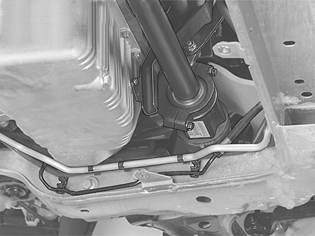

Fig 1: Drive Shaft At Transmission

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE:

Take care not to damage the drive shaft seal in the transmission.

Install the drive shaft pilot bearing cover

Tighten with 25 Nm .

Align the drive shaft in the wheel arch. Install a new screw loosely in the drive shaft.

Install:

the mobile jack under the sub-frame. Remove both the sub-frame screws. Lower the sub-frame approximately 10 cm
the wheel spindle on the control arm
the lock nut loosely.

Lift the sub-frame to the bodywork. Install the frame screws.

Press the evaporator cable and the oil pipe into place in the sub-frame clips.
