Installing the exhaust pipe on the turbocharger (TC) and the starter motor on the engine

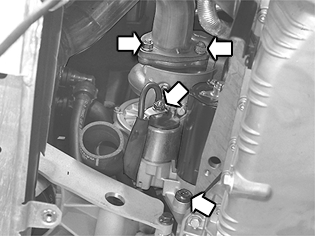

Fig 1: Exhaust Pipe To Turbocharger And Starter Motor Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

• the exhaust pipe on the turbocharger (TC). Use two new nuts. Tighten to 25 Nm
• the starter motor and the screw. Tighten to 40 Nm
• the cable on the starter motor and the nut. Tighten to 20 Nm
• the control cable for the solenoid.

Tighten the transmission screw. Tighten to 25 Nm  .
