Installing the delivery line on the rubber hoses

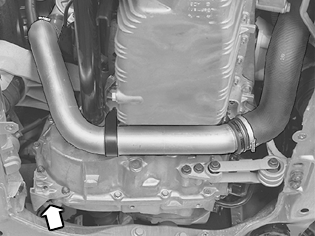

Fig 1: Charge Air Pipe For Turbocharger Under Engine

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

• the turbo pipe on the rubber hoses. Tighten the hose clamps
• the screws for the clamps on the gearbox. Tighten to 10 Nm
• the collision protection. Tighten to 25 Nm  .
