Installing and tightening the screws for the transmission

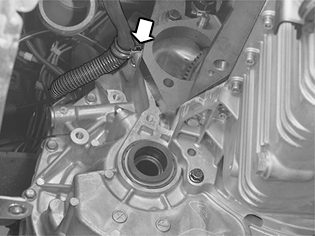

Fig 1: Gearbox / Engine Screw And Clamp

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

• one of the screws for the transmission and engine. Tighten to 25 Nm
• the clamp with the wiring and the screw. Tighten to 10 Nm  .

Remove the fixture from the transmission.
