Installing and tightening the screw for the rear engine pad

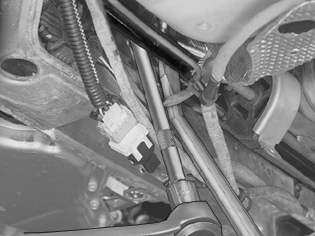

Fig 1: Identifying Screw & Rear Engine Pad

Courtesy of VOLVO CARS OF NORTH AMERICA.

Lift the anti-roll bar mounting a few mm. Use a jimmy bar. This makes it easier to insert the tool and the screw. Tighten to 50 Nm  .
