Installation of wire for key lock (automatic transmission only)

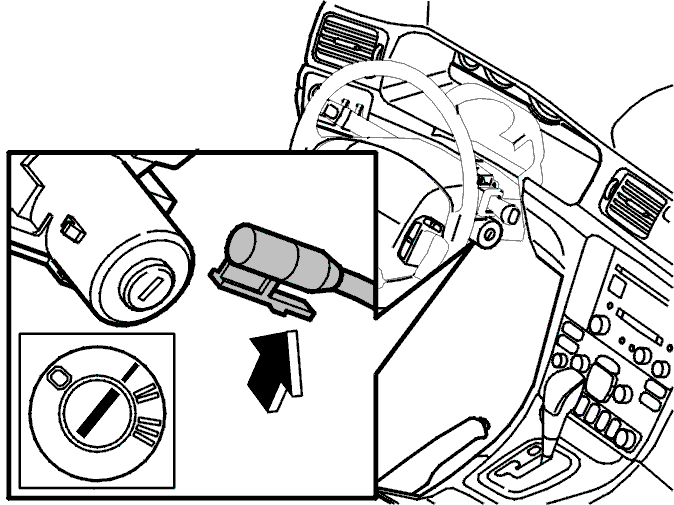

Fig 1: Identifying Ignition Switch Interlock Cable

Courtesy of VOLVO CARS OF NORTH AMERICA.

Applies to cars with automatic transmission:

• Put the gear lever into position P.
• Set the ignition key in position I.
• Press in the wire in the ignition lock and feel to ensure that it is firmly fastened.
• Remove the ignition key and check that the gear lever is blocked in position P.
