Combined instrument panel surround: Removal

Removing the combined instrument panel surround

Fig 1: Identifying Boot And Surround

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Remove the boot from the surround.

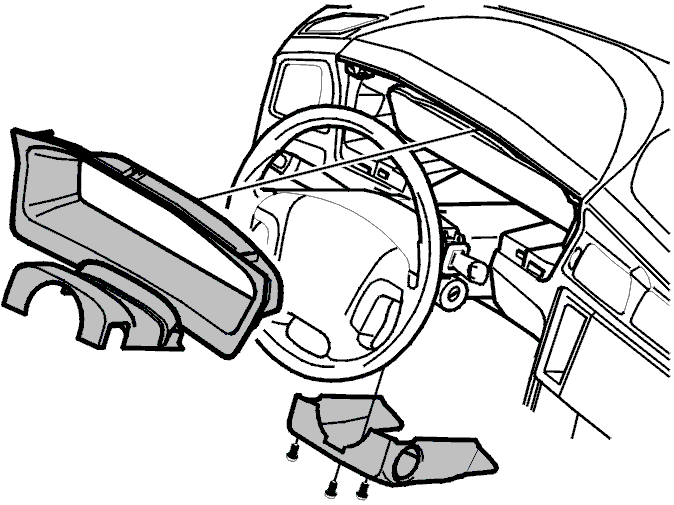

Fig 2: Identifying Screws, Lower Edge, Upper Cover, And Combined Instrument Panel Surround

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Remove the 3 screws from the lower cover.
• Pull the lower edge of the surround straight out.
• Insert fingers into the gap and pull straight out.
• Lift out the upper cover with the combined instrument panel surround.

Installing the combined instrument panel surround

Install:

• lower clip
• side clip
• upper clips.
• three screws in the cover.
